winIDEA HelpLeightWeight Timer

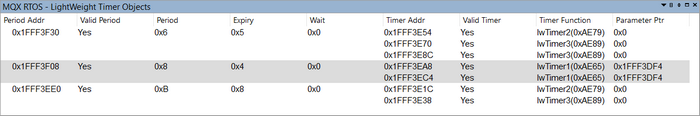

The MQX LightWeight Timer List view displays detailed information about all available lwTimer parameters. Each row with the same color, represents one lwTimer with multiple parameters.
 |
The functionality of each listed lwTimer parameter is described inside the following table:
Parameter name |
Description |
|---|---|
Period addr |
Pointer to the period that contains lwTimers |
Valid period |
Is lwTimer period component valid. |
Period |
Period (in ticks) of the timer queue. |
Expiry |
Number of ticks that have elapsed in the period. |
Wait |
Number of ticks to wait before starting to process the queue. |
Timer addr |
Pointer to the lwTimer. |
Valid timer |
Is lwTimer timer component valid. |
Timer function |
Function that is called when the timer expires. |
Parameter ptr |
Parameter that is passed to the timer function. |
