winIDEA Help

Version: 9.21.244

Objects

The Objects window shows a summary of all operating system objects.

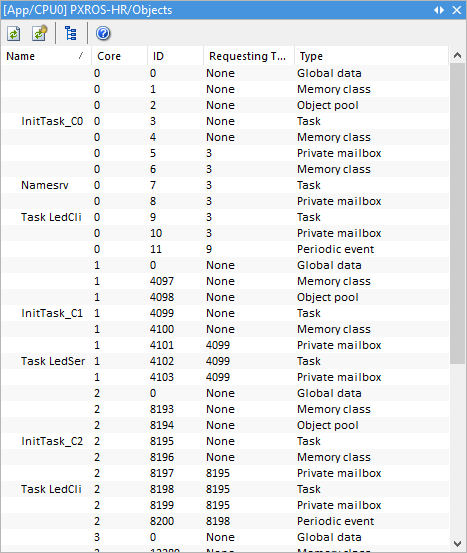

PXROS-HR_ObjectsWindow





Objects in the window are by default presented in the columns as shown in the table below.

Column name

Description

Name

For tasks, this column shows the task name, otherwise it is empty.

Core

The CPU core that this object belongs to.

ID

The unique ID of this object.

Requesting Task ID

The ID of the task that created this object.

Type

The type of the object.





The objects can also be presented hierarchically with the Organize as a tree toolbar button Plugin-e200cacheViewer-tree .

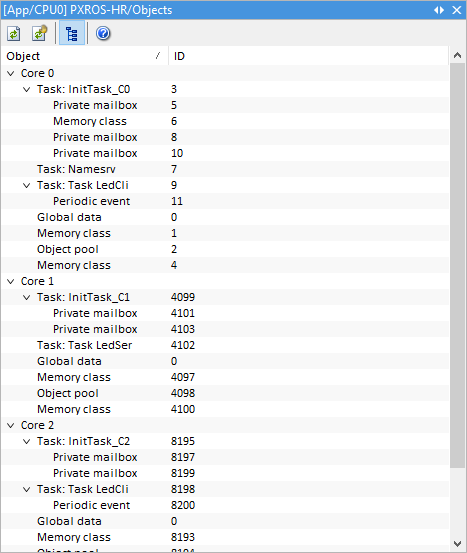

PXROS-HR_ObjectsWindow_TreeView

In this view, the objects are grouped first by core and then by task (if they belong to one).
