Coverage

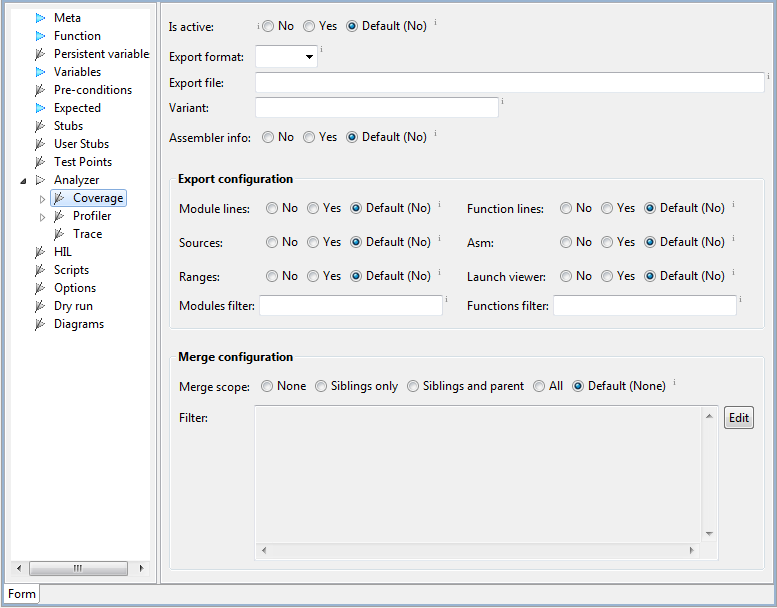

Coverage section can specify coverage statistics requirements, and
export options.
Coverage also supports accumulation of results from several
tests, if we select open mode Append in Analyzer
parent setion. To use this feature, we usually create a base test
case, which opens the document in Write mode, so that any
previous coverage data is cleared. Then derived test cases are
created, which start coverage in Append mode.
Another option for accumulation of coverage recordings is merging
of analyzer files. If Merge scope is set to something else
than None, then analyzer files from other already executed
test cases will be merged. To see which test cases are used for
merging, click Edit button for merge filter.The filter can
be used to futher limit the set of test cases.

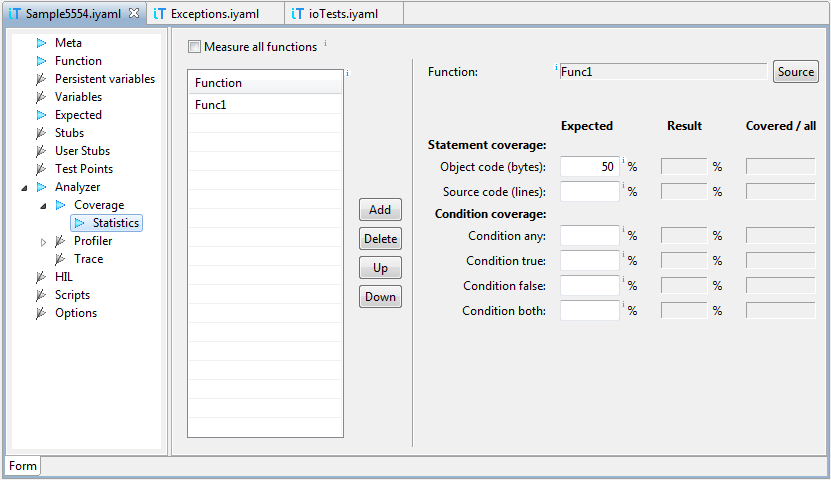

Expected minimum coverage can be specified in
section Statistics. If coverage is lower than specified,
test fails.
