Adaptation packages content
Conversion boards connect between the Emulation Adapter and the matching Solder part which is being soldered on the Target side.
Pin number |
Conversion board |
Type |
Solder part |
|---|---|---|---|
144 |
IEA-TC265DE-TQ144 |
Fixed |
IA144TQ-SOLDER |
Fixed Adaptation
The adaptation is elivered with a slot screw, which can be used to achieve a more solid and stable fixing of the Conversion board and the Solder part.

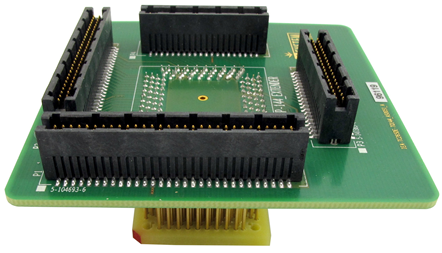

Conversion board |

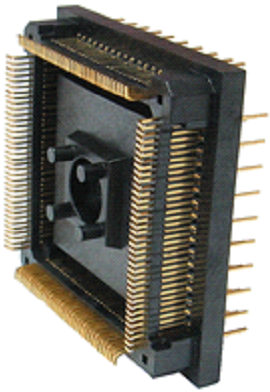

Solder part |
|---|---|
|
|
