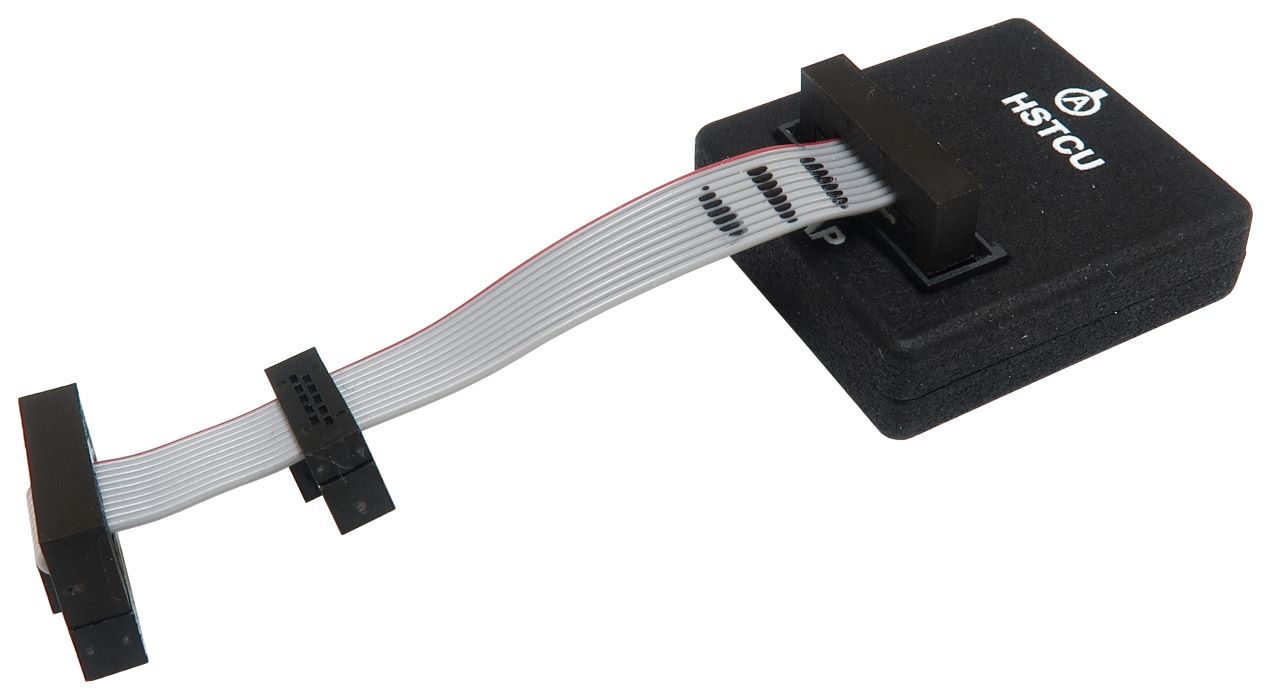

HSTCU (USB-C) to DAP10 1.27 Converter
This converter is used to connect Infineon SGBT (HSTCU) Active Probe to the target via DAP connector. It must be ordered separately.
When attaching this converter to the Active Probe, make sure its marking A and marking B is aligned and matches with the markings on the Active Probe connector. |
The following pinout is valid on the converter side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
---|---|---|---|---|---|---|---|
|
Ground |
GND |
A1 |
B12 |
NC |
Not Connected |
|
|
Not Connected |
NC |
A2 |
B11 |
NC |
Not Connected |
|
|
Not Connected |
NC |
A3 |
B10 |
NC |
Not Connected |
|
|
Not Connected |
NC |
A4 |
B9 |
NC |
Not Connected |
|
I/O |
Target Reset Pin |
nRESET |
A5 |
B8 |
DAP1 |
DAP Data |
I |
I/O |
Optional 2nd DAP data |
DAP2 |
A6 |
B7 |
NC |
Not Connected |
|
I/O |
Optional 3rd DAP data |
DAP3 |
A7 |
B6 |
NC |
Not Connected |
|
O |
DAP Clock |
DAP0 |
A8 |
B5 |
Vref |
Reference Voltage |
I |
|
Not Connected |
NC |
A9 |
B4 |
NC |
Not Connected |
|
|
Not Connected |
NC |
A10 |
B3 |
NC |
Not Connected |
|
|
Not Connected |
NC |
A11 |
B2 |
NC |
Not Connected |
|
|
Ground |
GND |
A12 |
B1 |
GND |
Ground |
|
(HSTCU) USB-C pinout
The following pinout is valid on the target side:
Signal Direction |
Signal Description |
Signal |
Pin |
Pin |
Signal |
Signal Description |
Signal Direction |
---|---|---|---|---|---|---|---|
I |
Reference Voltage |
Vref |
1 |
2 |
DAP1 |
DAP Data pin |
I/O |
|
Ground |
GND |
3 |
4 |
DAP0 |
DAP clock |
O |
|
Ground |
GND |
5 |
6 |
DAP2 |
Optional 2nd DAP Data pin |
I/O |
|
Not Connected |
NC |
7 |
8 |
DAP3 |
Optional 3rd DAP Data pin |
I/O |
|
Ground |
GND |
9 |
10 |
nRESET |
Reset |
I/O |
10-pin Infineon DAP pinout
Signal Direction is described from the BlueBox perspective.
When initially connecting the BlueBox to a target, ensure the debug adapter pinout matches the Target connector to avoid potential hardware failure. |
