9.17.105.0.89038 (7.4.2019)
Hotfix build release notes
Software
Initialization

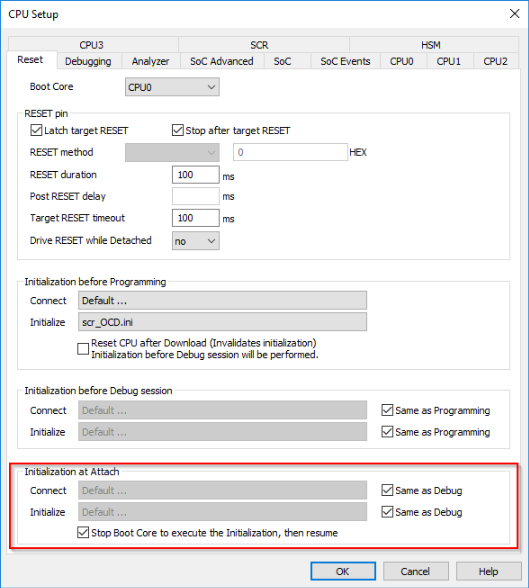

Implemented CPU initialization at attach
CPU support
Cortex
Changes to Hardware / CPU options / SoC dialog.

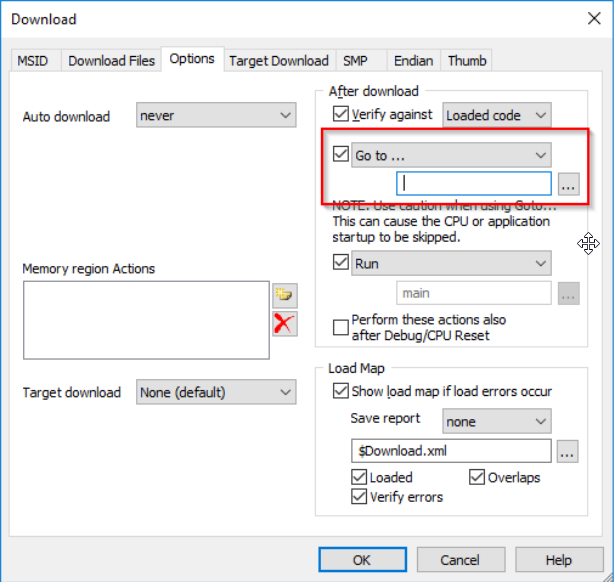

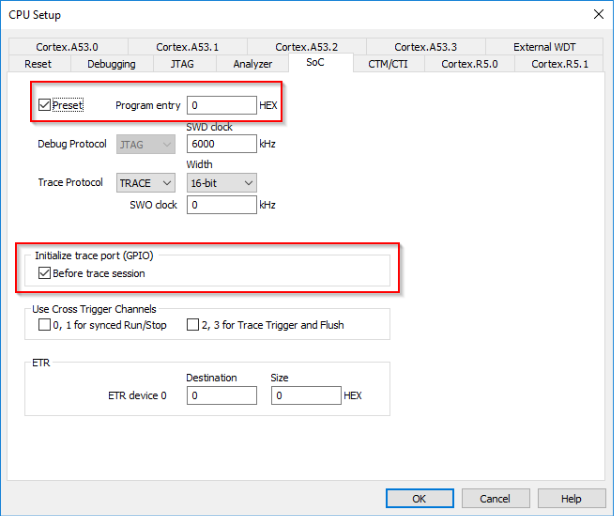

1. Option Program entry removed. Option still available in Debug / Files for Download / Options.
2. Unused option Initialize trace port (GPIO) removed from the dialog.
Previous |
Previous & Current |
|
|

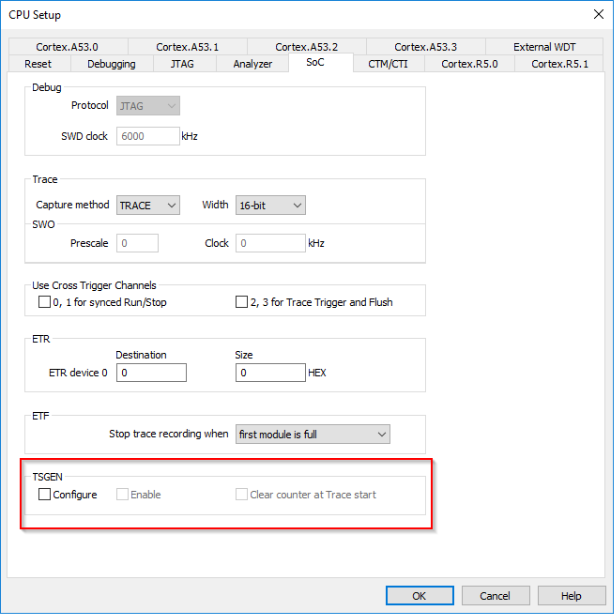

3. Redesign of Hardware / CPU options / SoC dialog and added new configuration option TSGEN.
|
•Trace Capture method (previously named Trace protocol): Depending on chosen capture method (TRACE/SWO/ETR/ETF/ETB) additional configurations are available.
•TSGEN When Configure is enabled: Option Enable: winIDEA will enable counter Option Clear Counter when trace starts: winIDEA will clear counter.
When Configure is disabled: TSGEN application settings will not be affected by winIDEA configurations.
|
