9.17.112.0.90751 (30.5.2019)
Hotfix build release notes
Software
ETMv3

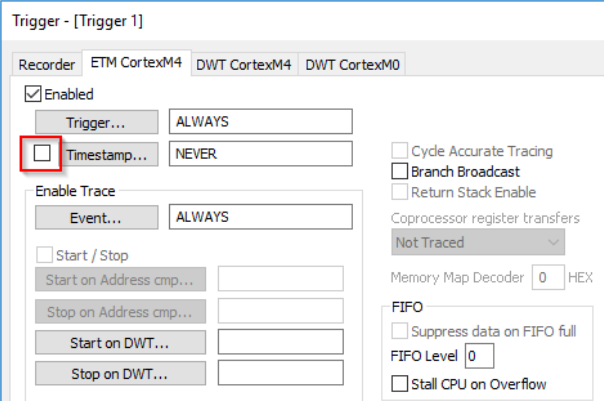

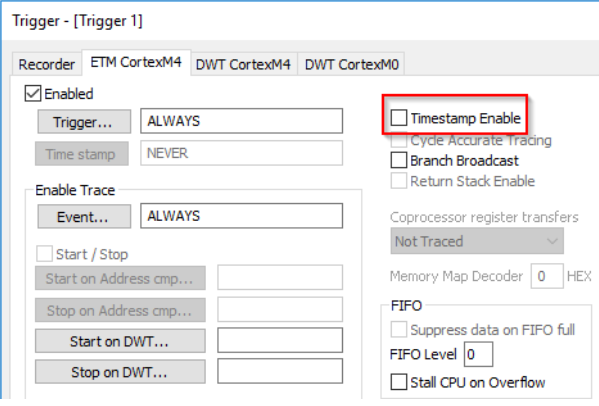

Enabling internal timestamps checkbox in Analyzer Trigger configuration / ETM... tab moved.
Previous |
Current |
|
|
CPUs
Cortex-M

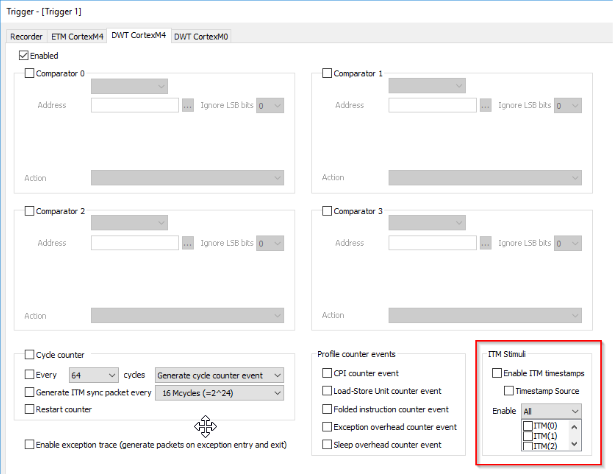

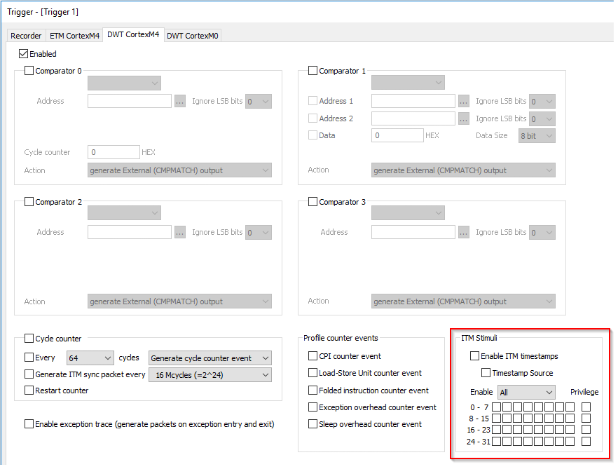

Improved dialog for ITM Stimuli configuration in Analyzer Trigger configuration / DWT... tabs. Added Privilege selection, where for groups of 8 ports a privileged/unprivileged mode can be selected.
Previous |
Current |
|
|
NXP LPC43xx Trace init script configuration

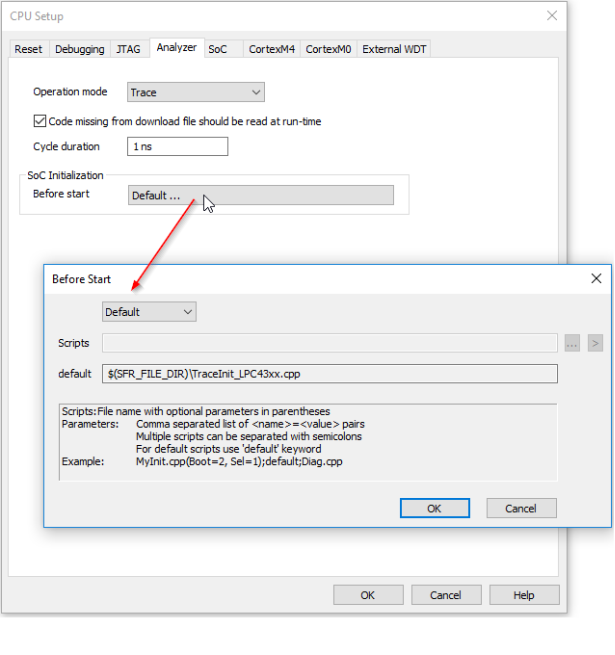

Default Trace init script added with configuration: TraceData[0…3] = PORT_F in Hardware / CPU options / Analyzer tab.

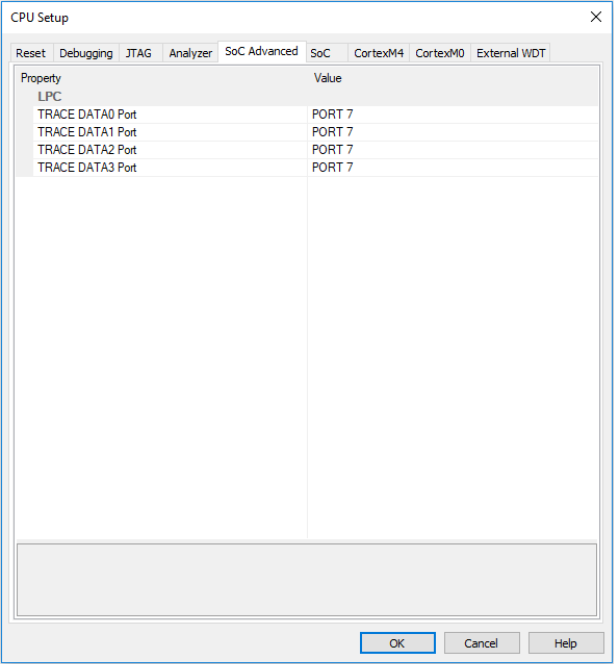

Removed Hardware / CPU options / SOC Advanced tab.
Previous |
Current |
|
|
|

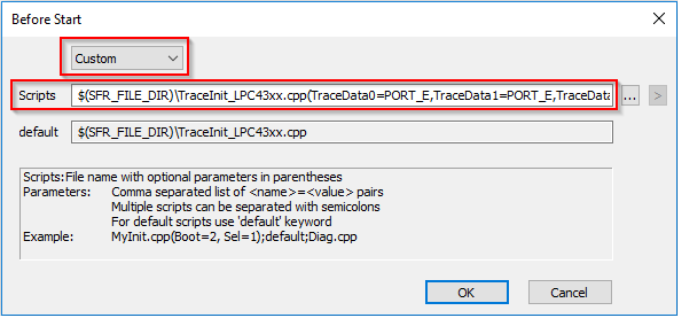

Old workspaces (9.17.111 or older) with non-default trace port selection will not work in new winIDEA (9.17.112 or newer). To fix, choose Custom selection and define TraceInit_LPC43xx.cpp script with correct port selection parameters!
Custom example: $(SFR_FILE_DIR)\TraceInit_LPC43xx.cpp(TraceData0=PORT_E,TraceData1=PORT_E,TraceData2=PORT_E,TraceData3=PORT_E)
|
