9.17.148.0.101119 (05.03.2020)
Hotfix build release notes
IDE

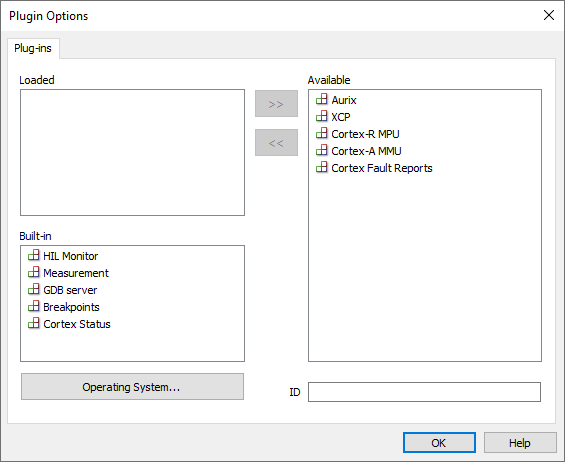

Plugin configuration dialog in Tools menu / Plugins removed. Target specific plugins are loaded automatically according to the used architecture. Non-target specific plugins are loaded with winIDEA.
Cortex

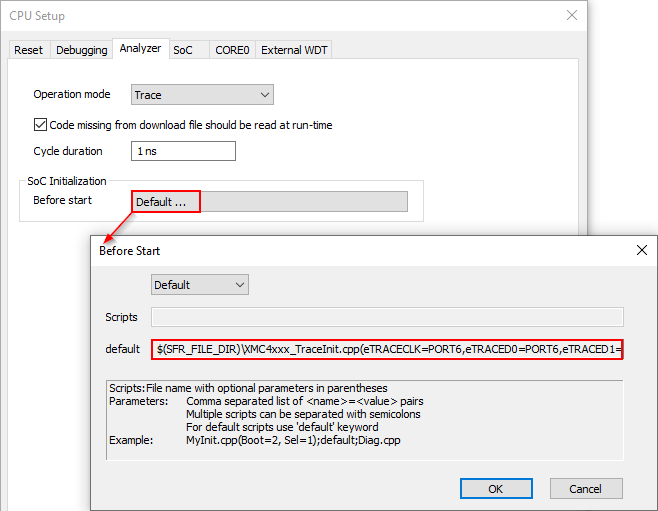

1. XMC4000: GPIO port selection for Infineon XMC4000 trace initialization performed by initializations script XMC4xxx_TraceInit.cpp in Hardware menu / CPU Options / Analyzer tab / SoC Initialization section by clicking Default. Script is distributed with winIDEA.
NOTE: If older workspaces are in use and if trace ports are different than the default setting, ports have to be configured anew.
Initialization script arguments:
Trace port |
Options |
Default |
eTRACECLK |
PORT2, PORT6, PORT7 |
PORT6 |
eTRACED0 |
PORT2, PORT3, PORT6, PORT8 |
PORT6 |
eTRACED1 |
PORT2, PORT4, PORT6, PORT8 |
PORT6 |
eTRACED2 |
PORT2, PORT4, PORT6, PORT8 |
PORT2 |
eTRACED3 |
PORT1, PORT2, PORT6, PORT8 |
PORT6 |

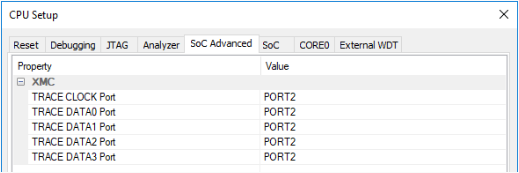

Previous Hardware menu / CPU Options / SoC Advanced tab |
Current Hardware menu / CPU Options / Analyzer tab |
|
|

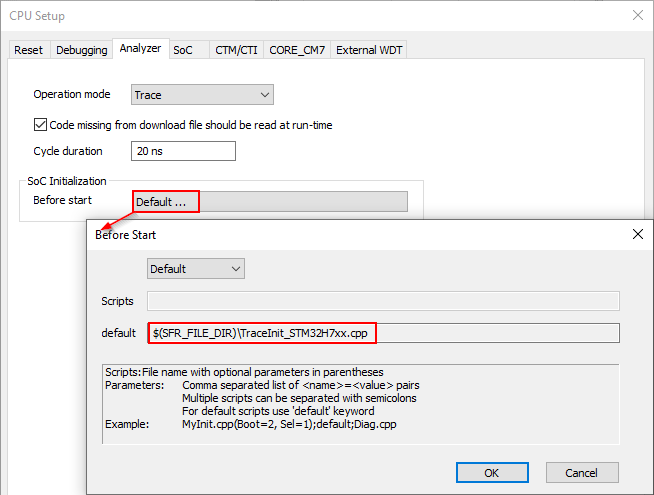

2. ST STM32H7: Trace initialization script renamed.

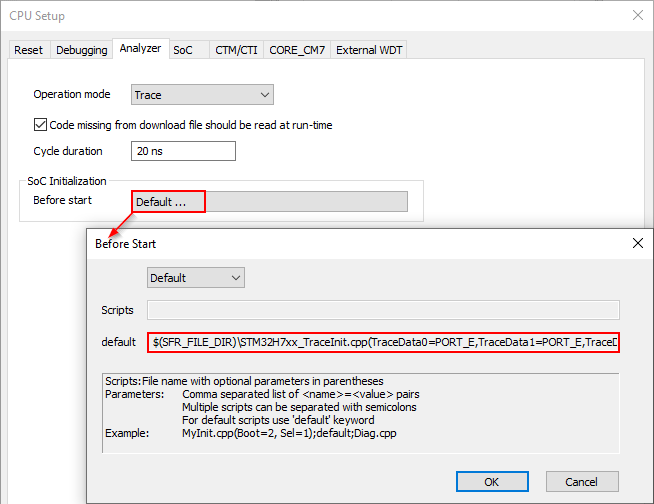

Script declaration example in Hardware menu / CPU Options / Analyzer tab / SoC Initialization section: $(SFR_FILE_DIR)\STM32H7xx_TraceInit.cpp(TraceData0=PORT_E, TraceData1=PORT_E, TraceData2=PORT_E, TraceData3=PORT_E.
Previous |
Current |
|
|
3. STM32H7x5: Added CPU debug and trace support for with features Debug, FLASH programming.
IDE
isystem.connect: FNet SDK released. Online documentation is available here.
