Release Notes

Hotfix build release notes





IDE

Target Board Preset Configuration

Newly added Evaluation Boards:

•NXP S32K3x4-Q172 General-Purpose Development Board

•NXP S32K3x4-Q257 Full-Featured General Purpose Development Board

•NXP S32K144-Q100 General-Purpose Evaluation Board

•NXP S32K148-Q176 Automotive General-Purpose Evaluation Board

•Infineon CYTVII-B-E-176-SO

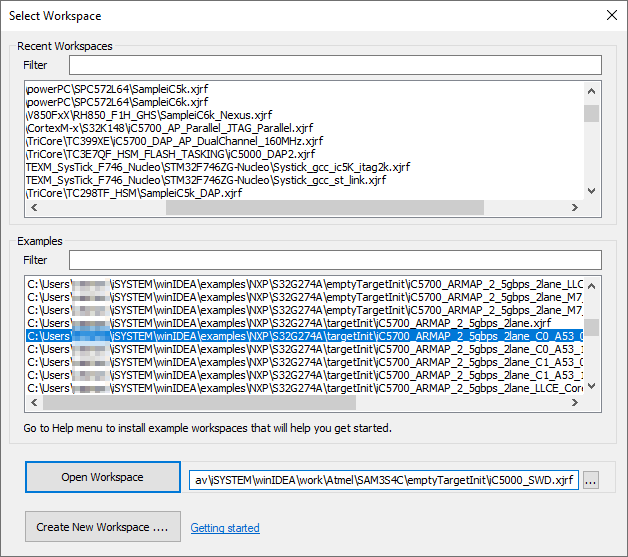

Select Workspace and Download Examples

Updated the File / Select Workspace dialog:

•The Download Examples was moved from the Help menu to the File menu / Select Workspace dialog.

•The Clone and Open Example button copies the example to a different location. The default location is %USERPROFILE%/iSYSTEM/winIDEA/work.







NXP/ST Power Architecture: Hardware Breakpoints dialog for eTPU core

The names of Hardware Breakpoints were changed in the Debug / Hardware Breakpoints dialog:

•WP1 and WP2 (Watchpoint) to BWC1 and BWC2 (Breakpoint/Watchpoint Control)

•Trigger On section to BWC3





Newly supported devices

Renesas

R-Car S4 - Added support for:

•Debug: JTAG, SWD, A55, R52, multicore (core sync)

•SFR

•Trace: A55 ETM ETF, R52 ETM ETF



RH850 U2A - Added support for R7F702302



ST Microelectronics

STM32L4x6 - Added support for:

•Debug: peripheral freezing



STM32H743 - Added support for STM32H743xG



NXP

S32G3 - Added support for:

•Trace: A53 ITM ETF, A53 ITM ETR, M7 DWT ETM ETF, M7 DWT ETM ETR, M7 DWT ITM ETF,

•Extra: eFUSE
