9.21.159.0.147742 (2.3.2023)
Hotfix build release notes
IDE
TriCore/Counters and Aurix/Clocks plugin: MCDS and MCDS cycle duration
MCDS was removed from the TriCore/Counters plugin. Analyzer Cycle duration was renamed to the MCDS cycle duration, and moved from the TriCore/Counters to the Aurix/Clocks plugin.

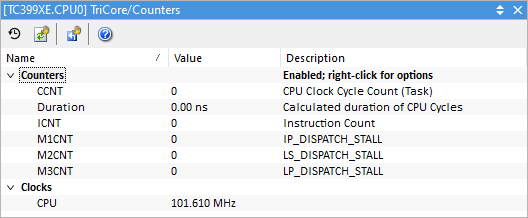

Currently View menu / [<device.core>].TriCore / Counters |

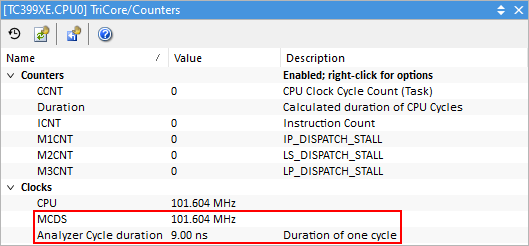

Previously View menu / [<device.core>].TriCore / Counters |
![]()
|
![]() |

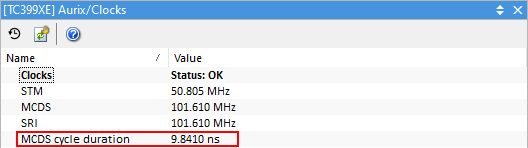

Currently View / <device> Aurix <core> / Clocks |

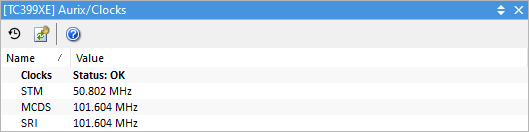

Previously View / <device> Aurix <core> / Clocks |
![]() |
![]() |
Security checker
Security license is required for Security checker.
Newly supported devices
Renesas
RH850 F1KM-S4 - Added support for: R7F701A60
RH850 U2A - Added support for: R7F702300A, R7F702300B
Texas Instruments
TDA4VM (J721E) - Added support for:
•Trace: A72 (Main Domain) ETM Parallel, R5 (Main Domain) ETM Parallel, R5 (MCU Domain) ETM Parallel, M3 (WKUP Domain) DWT ITM Parallel, M3 (WKUP Domain) ITM Parallel
AWR294x - Added support for:
•Debug: HSM (Cortex-M4)
NXP
S32Z27 - Added support for:
•Debug: JTAG
•Trace: R52 ETM ETR, System Manager (M33) ETM ETR, System Manager (M33) DWT ITM ETR, System Manager (M33) ITM ETR, FlexLLCE (M33) ETM ETR, FlexLLCE (M33) ITM ERF, FlexLLCE (M33) DWT ITM ETR, FlexLLCE (M33) ITM ETR
