Release Notes

Supported IDE features and graphics

Smart UCB programming for 3rd generation Aurix - TC4x

The Aurix feature for UCB configuration introduces smart programming capabilities tailored for the third generation of Aurix devices - TC4x. It is enables the configuration of various settings crucial for system operation and security:

•Set RTC Startup Address

•Set RTC PFlash Protection

•Set CS Startup Address

•Set CS PFlash Protection

•Set Debug Password

•Set User Configuration

•Set CS User Configuration

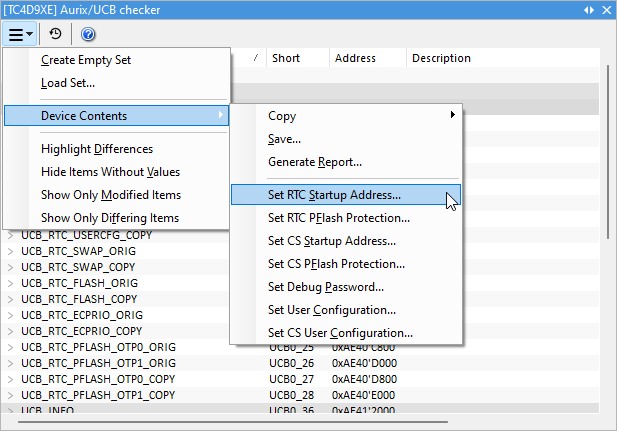

Open View / [SoC] / Aurix / UCB checker.







TC499A (step A / demonstrator silicon) is not supported by this feature.





Newly supported devices

NXP

S32K348

Adding support.



•Debug: JTAG, SWD, 1x CM7

•SFR

•UMI: Code FLASH, Data FLASH

•Trace: ETM Parallel, ITM Parallel, DWT ITM Parallel, HTM Parallel, ETM SWO, ITM SWO, DWT ITM SWO, HTM SWO,  ETM ETF, ITM ETF, DWT ITM ETF, HTM ETF



winIDEA version: 9.21.224.0.163521





Texas Instruments

AM62Ax

Adding support.



•Debug: JTAG, 4x Cortex-A53, 1x Cortex-R5F (MCU), 1x Cortex-R5F (Device Manager/WKUP), DDR Init

•Trace: A53 ETM STM, R5F ETM STM (WKUP), R5F ETM STM (MCU), A53 ETM ETB, R5F ETM ETB (WKUP), R5F ETM ETB (MCU)



Variants:

•AM62A74

•AM62A72

•AM62A34

•AM62A32

•AM62A31



winIDEA version: 9.21.227.0.164882





AM62Ax

Extending support:

•UMI: QSPI

•Trace: A53 ETM Parallel, R5F ETM Parallel (WKUP), R5F ETM Parallel (MCU)



winIDEA version: 9.21.227.0.164882





Andes

AE350

Adding support.



•Debug: JTAG, RV32IMACFDBP

•SFR



winIDEA version: 9.21.225.0.164302





RL78

F23/F24

Supported on E2 Renesas debugger.



Supported features:

•Debug

•Flash programming



winIDEA version:  9.21.227





Known issues

Refer to this document for more information.
