Release Notes

Supported IDE features and graphics

Watchdog disable pin drive

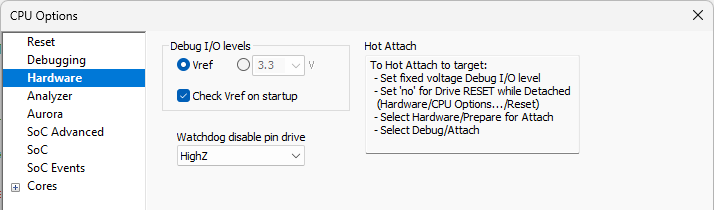

The Watchdog disable pin drive option in Hardware | CPU Options | Hardware enables you to drive the external watchdog signal low or high.

This feature is supported on iC7 Debug Adapters Infineon AUTO 26-pin (1.27mm) and Infineon AUTO 20-pin (1.27mm).









Basic and Full Session Configuration

A Session Configuration can be achieved in two ways: Basic Session Configuration and Full Session Configuration. The Basic Session Configuration allows a quick and simple winIDEA Workspace configuration, while the Full Session Configuration offers a more comprehensive suite of settings.

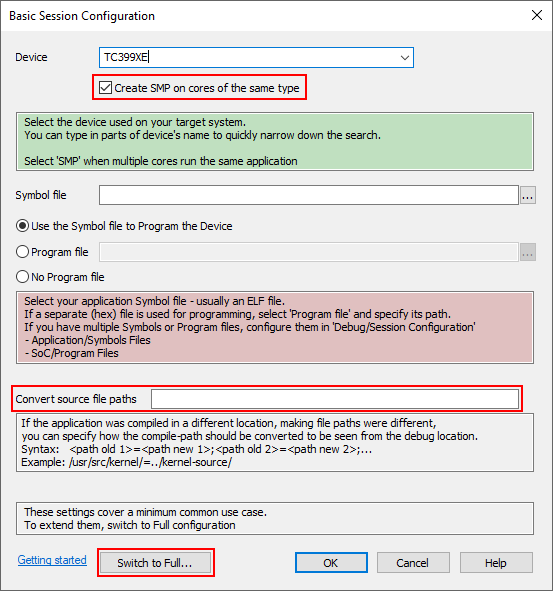

The Basic Session Configuration now also offers the options:

•Create SMP on cores of the same type

•Convert source file paths



You can flip from the Basic Session configuration to Full Session Configuration via Debug | Configure Session | Switch to Full.

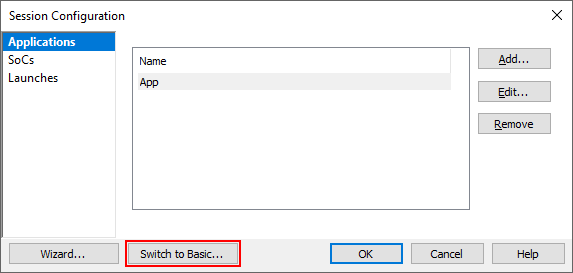

You can flip back to the Basic Session Configuration via Switch to Basic button.

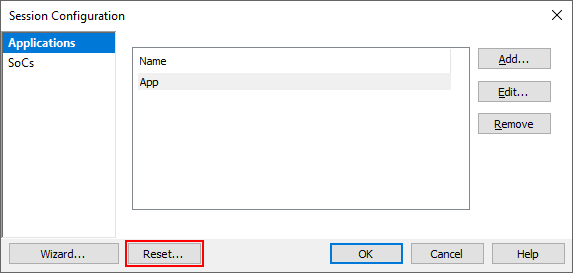

Previously this button was called Reset.







Newly supported devices

NXP

S32K396/394/376/374

Adding support.



Variants:

•S32K396

•S32K396LS

•S32K394

•S32K394LS

•S32K376

•S32K376LS

•S32K374

•S32K374LS



winIDEA version: 9.21.243.0.172141





Known issues

Refer to this document for more information.
