Release Notes

Hotfix build release notes





Newly supported devices

Infineon

Extended support for new devices of TC4x family.







AutoChips

AC7801x - Added support for:

•Debug: SWD, M0

•SFR

•UMI: Internal



Supported devices: AC7801xxA, AC7801xxB, AC7801xxC, AC7801xxD





NXP

Supported devices: iMX 8 QuadPlus, iMX 8 QuadMax



S32G3 - Added support for:

•Trace: A53 ETM HSSTP (Level 3), A53 ETM ETF (Level 3), A53 ETM ETR (Level 3), M7 ETM HSSTP (Level 3), M7 ETM ETF (Level 3), M7 ETM ETR (Level 3), M7 ITM ETR (Level 3), M7 DWT ITM ETR (Level 3)





IDE

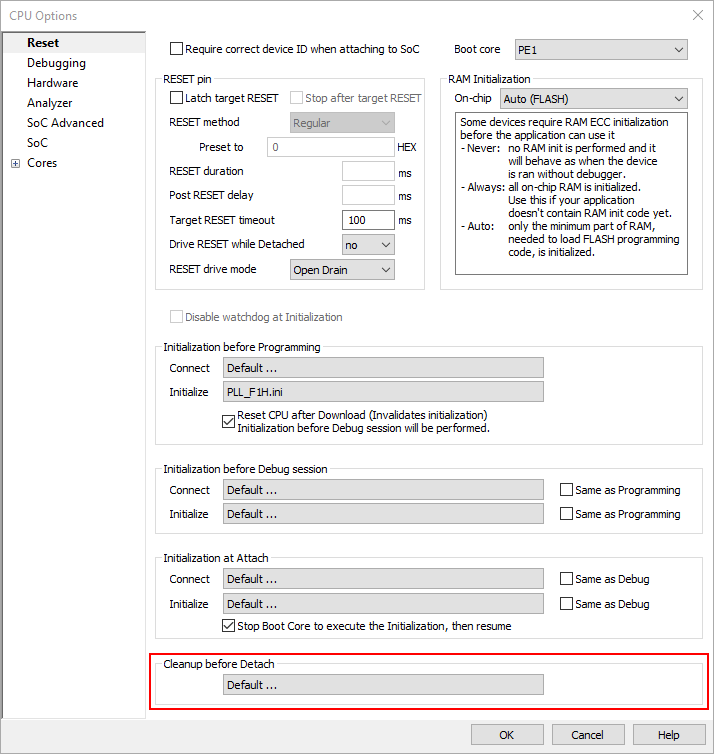

Cleanup before Detach

Option added to Hardware menu / CPU Options / Reset. This script extends the emulation detach and can be called on Disconnect and Hot Detach procedure. By default the script runs all cores.

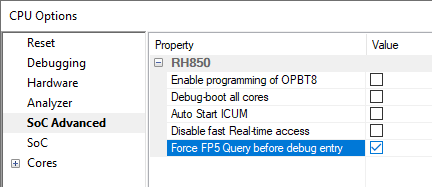

Force FP5 Query before debug entry

Option added to Hardware menu / CPU Options / Soc Advanced. Enable this option when the CPU does not have LPD4 configured and the automatic FP5 fall-back is failing.





Supported devices: RH850G3, 1st generation RH850, RH850/x1x SoCs.

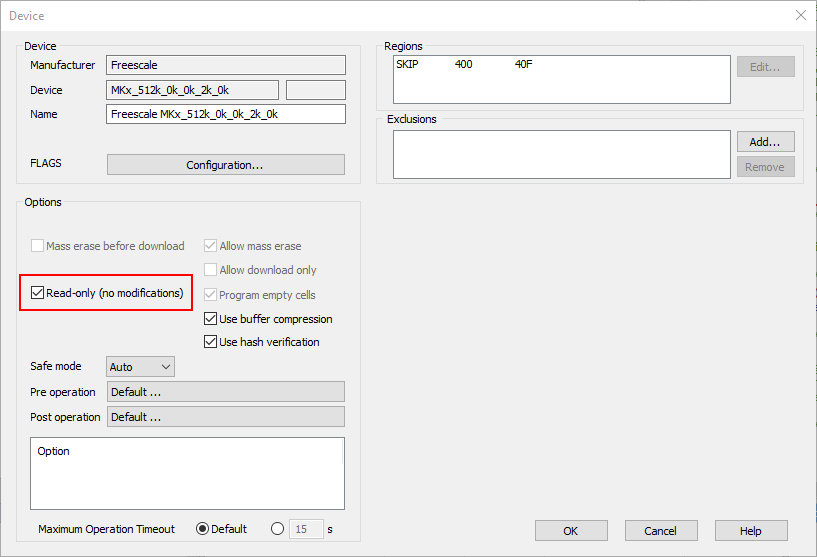

Read-only (no modifications)

A new feature Read-only (no modifications) is now available for disabling any flash modification via Hardware / <device> / Configure.







Tasking compiler

Supported

•TASKING SmartCode, new multi-core development environment for Infineon Next Generation AURIX™ TC4xx Microcontrollers.

•ARM Cortex-M, version 5.2r1





cJTAG Debug Protocol

cJTAG Debug Protocol supported on the iC5700 BlueBox via Hardware menu / CPU Options / SoC.
