Release Notes

Hotfix build release notes





Newly supported devices

RH850 P1x-C

R7F701331A - Added support.





GigaDevice

GD32F303 - Added support.





Texas Instrument

RM46L850 - Added support.





Infineon

Traveo T2G CYT3DL - Added support for:

•Debug: JTAG, SWD, M7, M0+, System Access Port, multicore (core sync), peripheral freezing

•SFRs

•UMI: Internal CODE, Internal WORK, Internal CODE (when in dual bank mode), Internal WORK (when in dual bank mode)

•Trace: M7 ETM Parallel (Level 3), M7 ITM Parallel (Level 3), M7 DWT ETM Parallel (Level 3), M7 DWT ITM Parallel (Level 3), M7 ETM ETB (Level 3), M7 ITM ETB (Level 3), M7 DWT ETM ETB (Level 3), M7 DWT ITM ETB (Level 3), M0 MTB (Level 3)





IDE

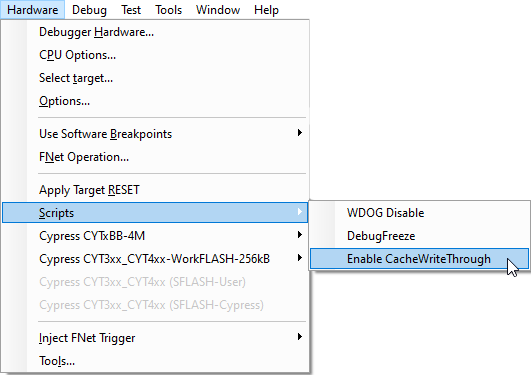

L1 Cache Write-through enable EVE script

For ARM Cortex Cypress Traveo II,  L1 Cache Write-through enable EVE script was added (Hardware / Scripts / Enable CacheWriteThrough). It enables to propagate variables in  L1 cache to  memory for real-time observing.

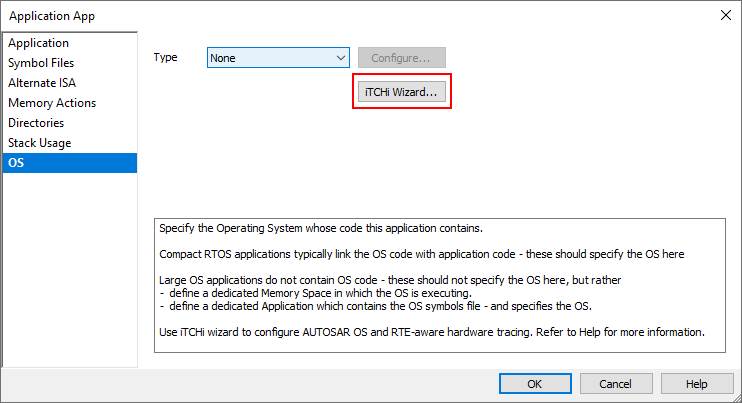

iTCHi Wizard

iTCHi Wizard helps you navigate through iTCHi configuration process with displaying some additional help along the process. For opening the wizard press the iTCHi Wizard button in Debug / Configure Session / Applications / Application App / OS.

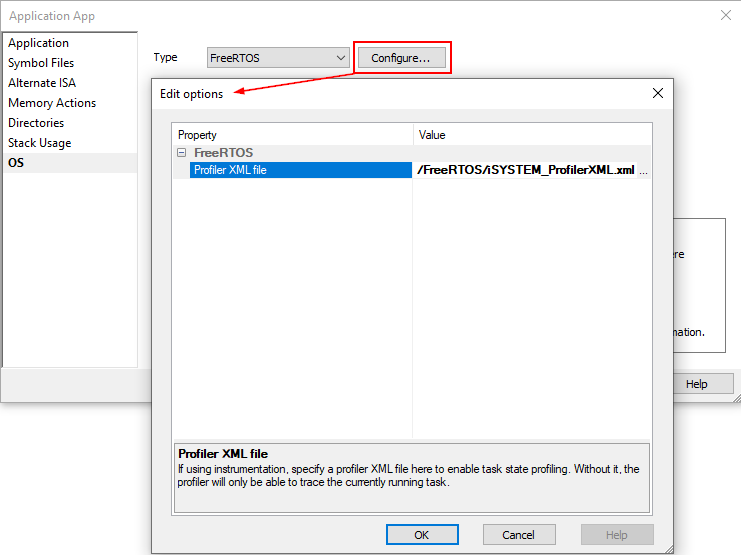

FreeRTOS profiler XML option

The FreeRTOS plugin can use a Profiler XML file for task state profiling. The Profiler XML file can be specified in the Edit options dialog (Debug / Configure Session / Applications / Edit / OS).









Deprecated hardware and devices

Infineon TriCore + Aurora trace + iC6000

Latest verified build is 9.21.69.
