This chapter describes how configure and provide network description for the Network analyzer CAN / LIN - CAN1 / CAN2 pages.

Network - Give the network a meaningful name.

Add - Add CAN description files (*.dbc)

Mode - CAN1 and CAN2 ports can be configured to record in the following modes:

•CAN

•CAN-FD ISO

•CAN-FD BOSCH

How to inject CAN message read here...

Allow message injection - Tick checbox to enable CAN message injection. Message injection is disabled by default.

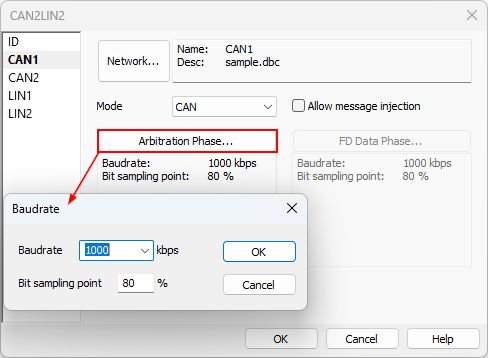

Arbitration Phase - Select the desired arbitration baudrate.

FD Data Phase - If CAN-FD is used, click on FD Data Phase to configure the desired data transmission baudrate. Baudrate can be selected by choosing one of the standard baudrates from the drop down menu or by entering a specific baudrate.
