9.21.100.0.136662 (9.6.2022)
Hotfix build release notes
IDE
RH850: Stall CPU to prevent overflows
In the Trigger - [Trigger Configuration] dialog, the Stall CPU to prevent overflows option was moved from SRC_PEx to SoC and renamed to Stall CPUs to prevent overflows.
Previously, this option applied to individual sources; now it applies to all sources at once.

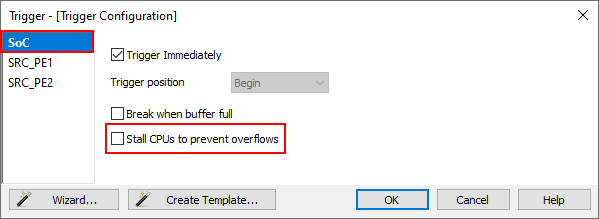

Currently Analyzer Configuration / Manual Trigger/Recorder configuration / Configure / Trigger - [Trigger Configuration] / SoC |

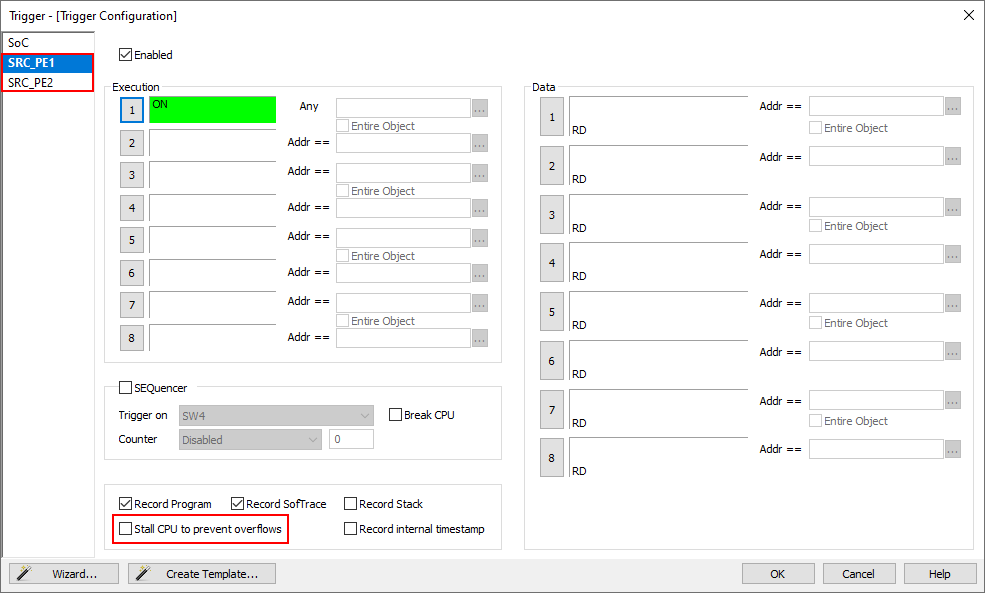

Previously Analyzer Configuration / Manual Trigger/Recorder configuration / Configure / Trigger - [Trigger Configuration] / SRC_PEx |
---|---|
![]() |
![]() |
SFRs
The Tools / Options / SFR Window has been changed since the reading procedure of SoCs that contain SFR groups with thousands of SFRs has become exceedingly slow, which made it user-unfriendly.
•New SFR values are now read when being drawn.
•In the Tools / Options / SFR Window dialog, the sections Update and Abort refresh removed since these settings are not needed any more.

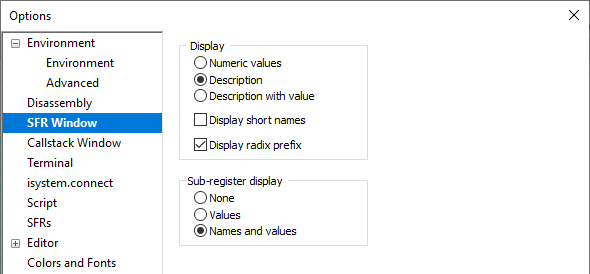

Currently |

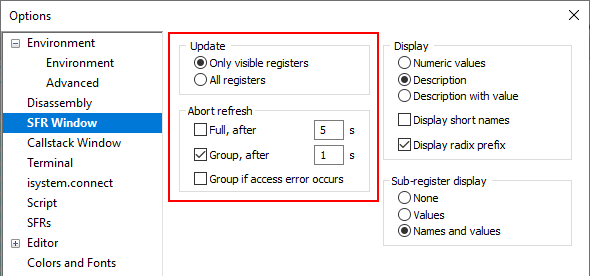

Previously |
---|---|
![]() |
![]() |
daqIDEA: Specific memory locations and Expression type modifiers
Besides the desired variable in the Variable settings / Variable name field, the following can also be specified:
•a memory address for sampling with prefixing a desired address by a colon,
•format of variable values by using expression type modifiers.
Supported expression type modifiers:
•c - force 8 bit signed integer type •z - force 8 bit unsigned integer type |
•i - force 16 bit signed integer type •w - force 16 bit unsigned integer type |
•l - force 32 bit signed integer type •u - force 32 bit unsigned integer type |
•ll - force 64 bit signed integer type •ull - force 64 bit unsigned integer type |
Newly supported devices
Renesas
RH850 P1M-E - R7F701376 - Added support
RH850 U2A - Added support for:
•Debug: PWD protection
•Trace: SoftTrace OnChip, Program OnChip, Data OnChip, SoftTrace LPD
NXP
S32K311, MWCT2015S - Added support
