9.21.98.0.136361 (2.6.2022)
Hotfix build release notes
IDE
Counters core window updated (TriCore plugin)
1. Edit options dialog:
oMoved from the toolbar to the context menu which is opened via right-click on the Counters
oDivided to the following commands:
▪Modify
▪Reset
▪Configure

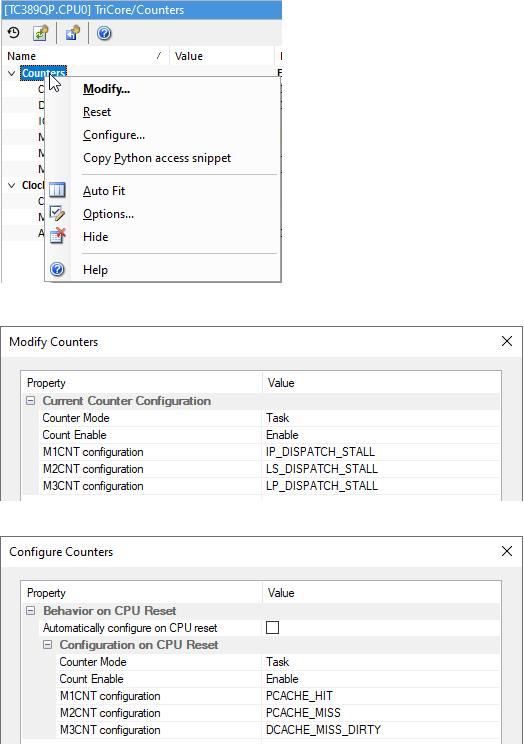

Currently Context menu of Counters item / Modify or Configure |

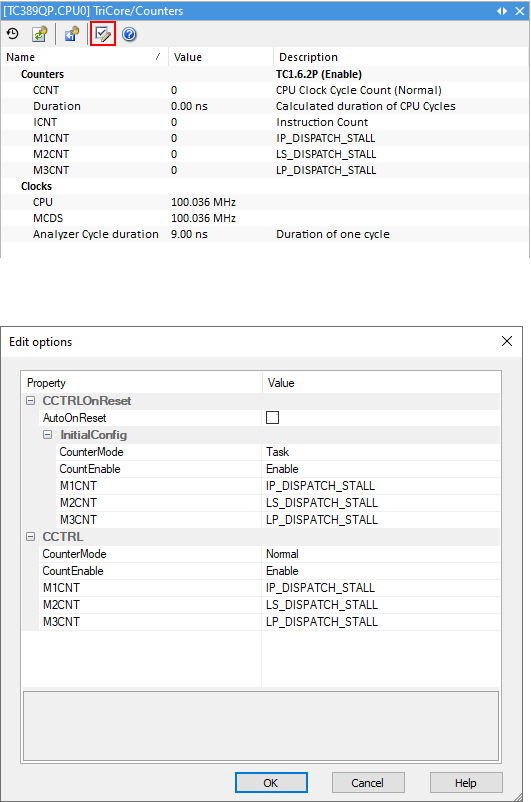

Previously Options button |
---|---|
![]() |
![]() |
The following terms were renamed:
Currently |
Previously |
---|---|
Behavior on CPU Reset |
CCTRLOnReset |
Automatically configure on CPU reset |
AutoOnReset |
Configuration on CPU Reset |
InitialConfig |
MxCNT configuration |
MxCNT |
Current Counter Configuration |
CCTRL |
2. The item View / [device.core] TriCore / Options was replaced by the command Configure in the Context menu of the Counters item. It opens the Configure Counters dialog box.
3. The option AutoOnReset was renamed to Automatically configure on CPU reset. The option is now disabled by default for new workspaces.
Core Selection dialog

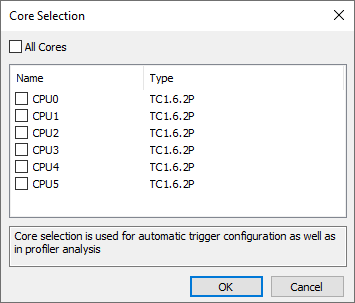

Core Selection dialog enables you to select one, more or all the cores you like to record/analyze.

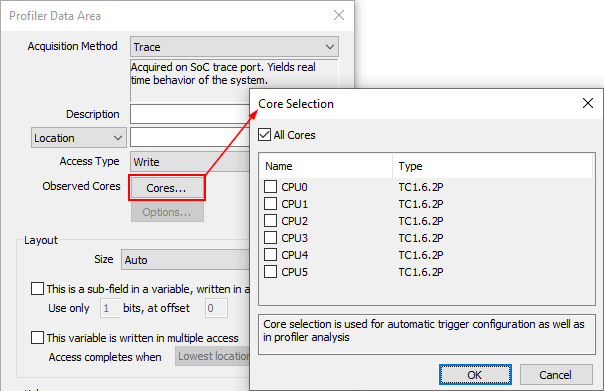

The Core Selection dialog opens via the Cores button that can be accessed in several ways from Analyzer Configuration / Profiler. The button was added to:
•enabled Code,
•enabled Data / NewPC Sampling,

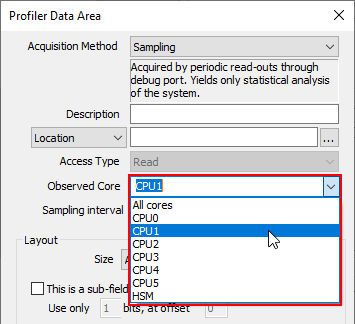

•enabled Data / New / Observed Cores, which replaced the drop-down list.
Currently |
Previously |
---|---|
![]() |
![]() |
Newly supported devices
NXP
MPC5748C - Added support for:
•UMI: e200z4, HSM
Deprecated hardware and devices
Eiger
•SPC58NE84 (remains SPC58NE84_Cut2)
•SPC58NE84_EMU (remains SPC58NE84_EMU_Cut2)
Chorus6M
•SPC58EG84_Cut0 (remains SPC58EG84)
Chorus2M
•SPC584B60_Cut1_0 (remains SPC584B60)
•SPC584B64_Cut1_0 (remains SPC584B64)
•SPC584B70_Cut1_0 (remains SPC584B70)
