Release Notes

Hotfix build release notes





IDE

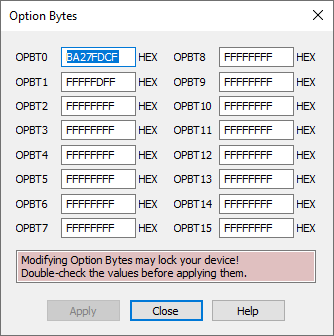

RH850 Option Bytes plugin

For RH850 G3 devices, a new SoC plugin Option Bytes is available. It provides a dialog for editing device-specific Option Bytes. The dialog can be opened from the View menu / [<device>] RH850 / Edit Option Bytes.







Auto start all observed cores

For RH850 G4 devices, a new option Auto start all observed cores is accessible via Hardware menu / CPU Options / SoC Advanced. If this option is checked, winIDEA automatically starts all observed cores on debug entry.





Initial STOP winIDEA Debug status

New:

       Initial STOP       - Core is in Initial STOP state. Can be started via the BOOTCTRL register.





PXROS-HR

The PXROS-HR plugin shows information about PXROS-HR operating system objects. The plugin windows can be opened from the View menu / [<application name>] PXROS-HR.







Newly supported devices

Renesas

RL78 - Added support for:

•Debug: UART

•SFR

•Flash Programming



Supported devices: RL78/F13, RL78/F14, RL78/F15, RL78/G14





ChinaCore

CCFC2012BC - Added support for:

•Debug: JTAG

•Debug

•SFR

•FPM



Supported devices: CCFC2012BC50, CFC2012BC60
