Release Notes

Hotfix build release notes





Newly supported devices

NXP

MWCT2D16S, S32K322 - Added support



S32G3 - Added support for:

•Debug: JTAG, SWD, A53, M7, M0, HSE, multicore (core sync), PSW protection, Challenge response

•SFR

•Trace: HTM

•Cold Boot support

Supported devices: S32G399A, S32G398A, S32G379A, S32G378A



ARM Cortex

NVIDIA Orin - Added support for:

•Debug: JTAG, SWD, FSI (R52), CHSM (R5)

•Trace: R52 STM ETF, R52 STM HSSTP, R52 STM ETR, R52 ETM ETF, R52 ETM HSSTP, R52 ETM ETR, CHSM (R5) STM ETF, CHSM (R5) STM HSSTP, CHSM (R5) STM ETR, CHSM (R5) ETM ETF, CHSM (R5) ETM HSSTP, CHSM (R5) ETM ETR



GigaDevice

GD32F450 - Added support for:

•Debug: JTAG, SWD, M4

•SFR

•UMI: Internal

•Trace: DWT ITM SWO, ITM SWO



Supported devices: GD32F450xE, GD32F450xG, GD32F450xI, GD32F450xK



Texas Instruments

J721E (Jacinto) - Added support for:

•Debug: multicore (core sync), M3 (WKUP Domain)







IDE

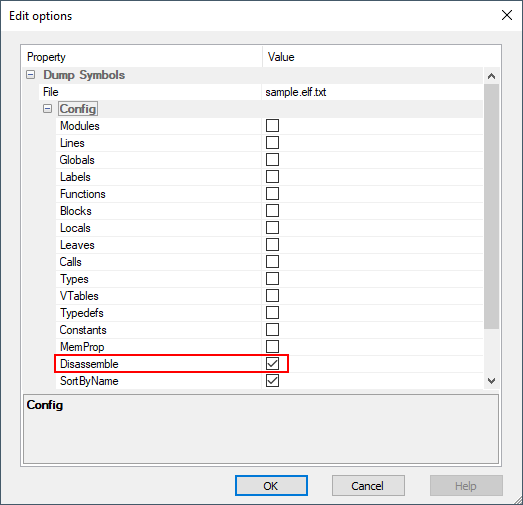

Disassembly of code to a file

This functionality outputs symbols, source lines and disassembly into a text file where it’s possible to search then for a specific symbol, source line or instruction. The functionality can be enabled by ticking the Disassemble option in the Symbols window / <Symbol file> context menu / Save / Edit options / Config.
