9.21.87.0.134296 (14.4.2022)
Hotfix build release notes
Newly supported devices
RH850 F1KH
R7F701711 - Added support.
ST Microelectronics
SR5E1 (Stellar 2M) - Added support for:
•Debug: JTAG, SWD, M7, multicore (core sync), Peripheral Freeze
•SFR
•UMI: Internal M7
STM32L552 - Added support for:
•Debug: JTAG, SWD, M33
•SFR
•UMI: Internal
IDE

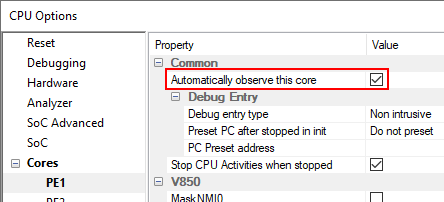

Automatically observe this core
In Hardware / CPU Options / Cores, the option Observe this core was renamed to Automatically observe this core.
Currently |

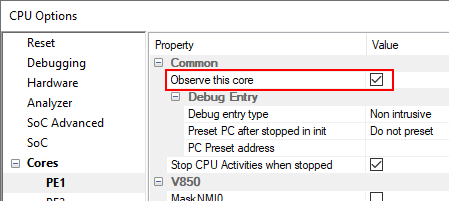

Previously |
---|---|
![]() |
![]() |

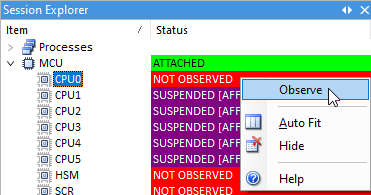

Observing the core on manual request
Observing a not observed core is possible at any time later, when the core is not automatically observed from the beginning of the debug session. In View / Debug / Session Explorer, right click on the core with NOT OBSERVED status and select Observe.

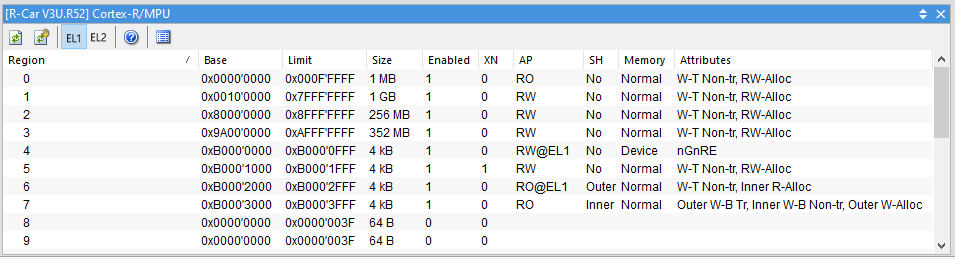

MPU plugin for ARMv8-R
The Cortex-R MPU ARMv8 is a core plugin and is used to view the number of Cortex-R MPU regions for ARMv8 Microcontrollers architectures, with the location address, size, access permissions, and memory attributes of each region. The plugin can be loaded by selecting View / [<device>.COREn].Cortex-R / MPU.
