winIDEA HelpFilter in the Trace Window
In this topic:
•Applying a filter to a search expression
Filtering the trace data
|

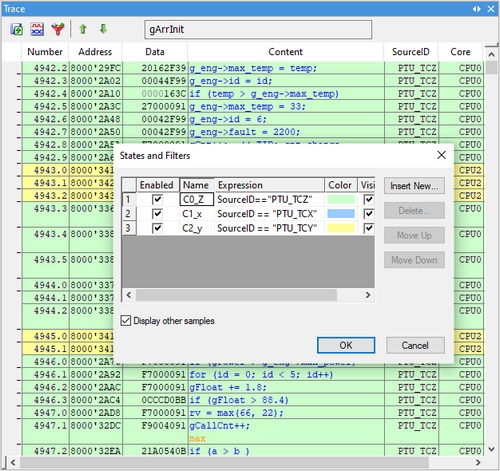

Select the Configure States and Filters button in the Trace Window Toolbar. |
|

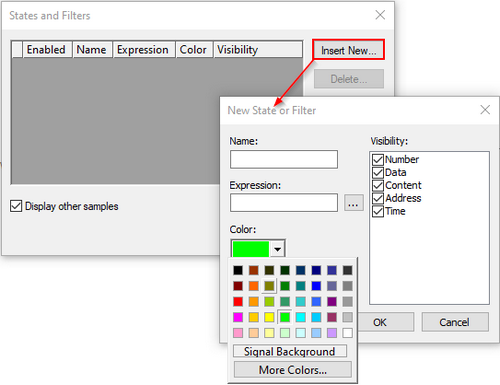

Click Insert New to add a new filter and select a color for it. |
|
Select a meaningful name. |
|
Set Visibility. |
Selection allows you to mask specific columns in the filtered results.
|

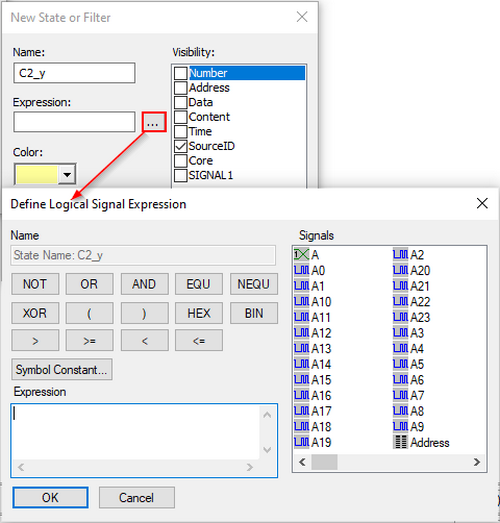

Click on the Expression button to open the Define Logical Signal Expression dialog. |
|
Specify the Logical Signal Expression in the Expression section that will be used for your filter. |
Results
You will see the filtered records colored as specified.
Applying a filter to a search expression
In case you would like search advanced strings and apply a filter follow these steps.
|

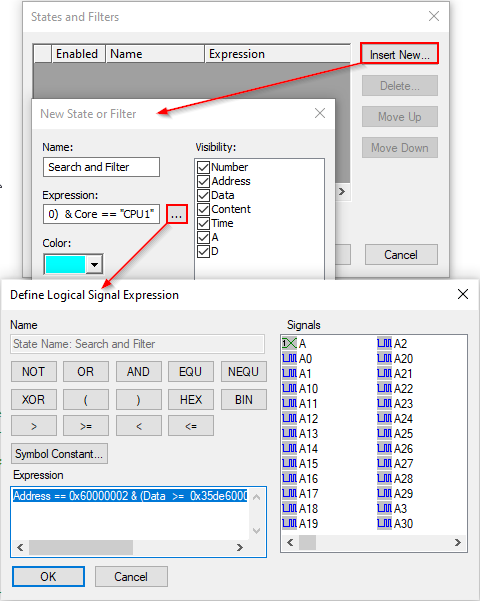

Select the Configure States and Filters button in the Trace window toolbar. |
|
Click Insert New to add a new filter and select a color the New State or Filter dialog. |
|
Select a meaningful name for the new state. |
|
Select specific columns in the Visibility section to mask the filtered results. |
|
Click on the Expression button to open the Define Logical Signal Expression dialog. |
|
Specify the Logical Signal Expression in the Expression section that will be used for your filter. |
Examples
1. Search for all lines with given address but only if Data is between 0x35de 6000 and 6100: Address == 0x60000002 & Data >= 0x35de6000 | Data <= 0x35de6100
2. Search for all lines with given address, but only if Data is between 0x35de 6000 and 6100; and Core CPU1: Address == 0x60000002 & (Data >= 0x35de6000 | Data <= 0x35de6100) & Core == "CPU1"

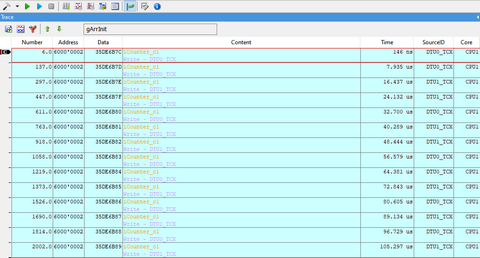

Results
