CAN message injection
CAN message injection is physically disabled by default.

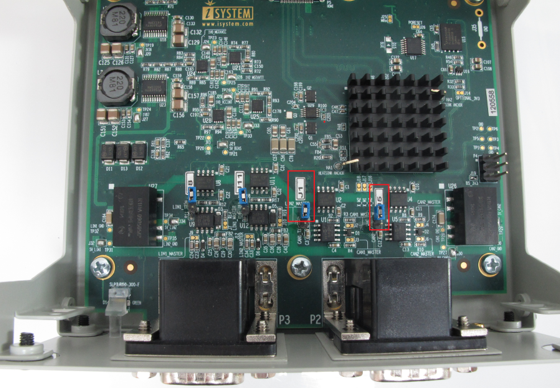

To enable injection remove the cover on your powered-down CAN/LIN device and place jumpers* on J1 for CAN1 and J5 for CAN2.
* Jumpers:
Revision B1 - Soldered jumpers
Revision B2 - Through hole jumpers
For a more detailed guide on this subject refer to CAN message injection in winIDEA Help.
